LINN Koil Moving Coil Cartridge
$1,795.00
My name is Terry, and I’m the owner of GC HiFi, based in Arundel on the Gold Coast. Hi-fi isn’t just my business — it’s my hobby and passion. I offer private, by-appointment demos in a relaxed environment. Let’s have a chat — 0418 691 294
Please contact us to confirm stock availability before placing your order.

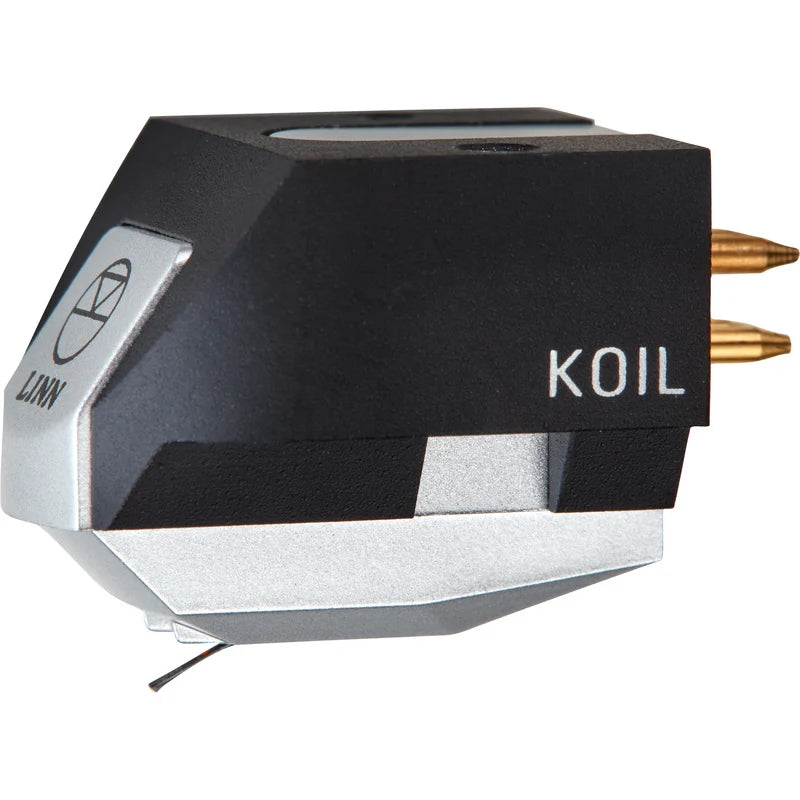

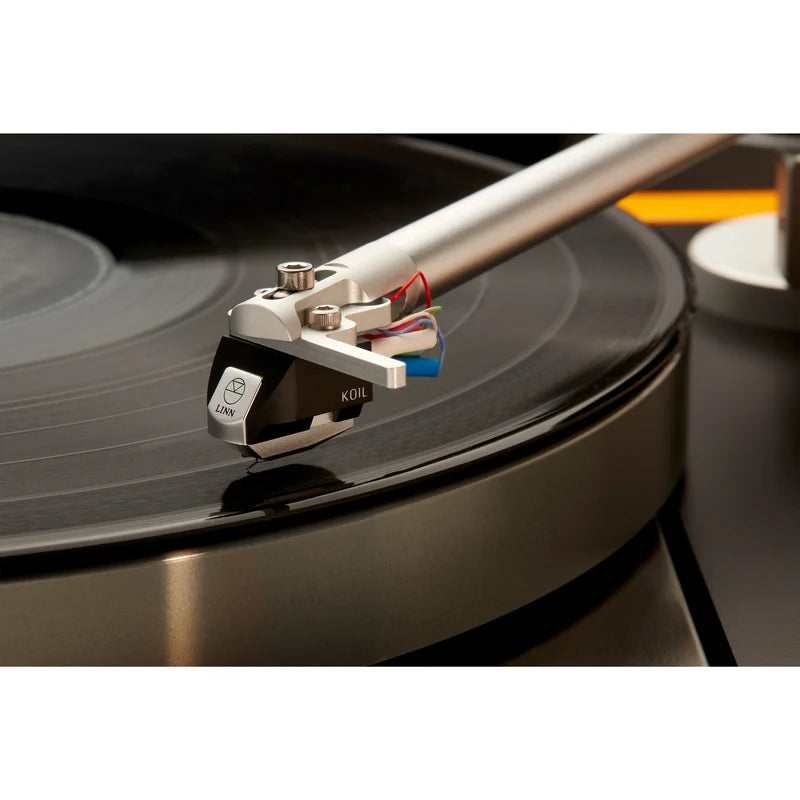

LINN Koil Moving Coil Cartridge
Koil is a superb first step onto the ladder of premium moving coil cartridges. This Majik-level cartridge provides a step up in performance from Adikt; and is available either as an upgrade, or fitted as standard to a new Majik LP12 MC.
Choose Koil if you intend to use your Majik LP12 with a moving coil phono preamplifier. Upgrade from Adikt to progress your journey along the path to vinyl playback perfection.
Key features
- Moving coil (MC)
- Nude Microlinear Stylus
- Low mass boron cantilever
Specifications
Stylus Type Nude Microlinear
Cantilever Boron
Coil Wire Copper
Pin Connection Type 1.2mm gold pin
Mounting Points 2
Output Voltage 0.4mV @ 5cm/s
Channel Balance at 1 kHz 1.0dB
Channel Separation at 1kHz 27dB
Load Resistance 100 Ω
Load Capacitance 100 nF
Tracking Force 1.8-2.2 g (2.0 g nom)
Cartridge Mass 7.6 g
